Mobile Datalogger
It is designed to record short-term data without installation in a specific location. There are models with 1 flow channel and 1 pressure channel with options on it and models with 1 flow channel and 2 pressure channels. It stores the measured flow and pressure data in its own memory. It communicates with the center at least 1 and at most 8 times a day and sends the data it has stored to the center.
The Mobile Data logger is produced with an internal battery. It is available on the option to work with external energy supply. You can use it to measure pressure and flow data at the points you specify on the network or in water tanks. There is a built-in GSM Modem for communication in the datalogger.
- Implementation

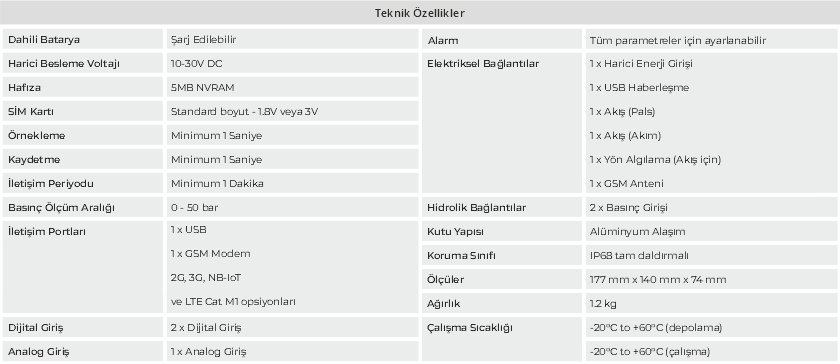

- Technical Specifications

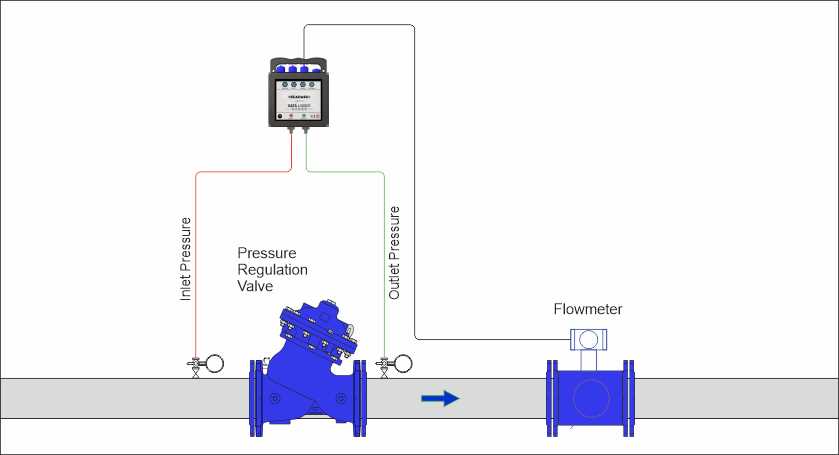

As seen in the figure, the flow signal cable from the flowmeter and the water connection from the bkv inlet and outlet are made to the Datalogger. After all the software and hardware settings are made correctly, the system is activated.

Product Versions

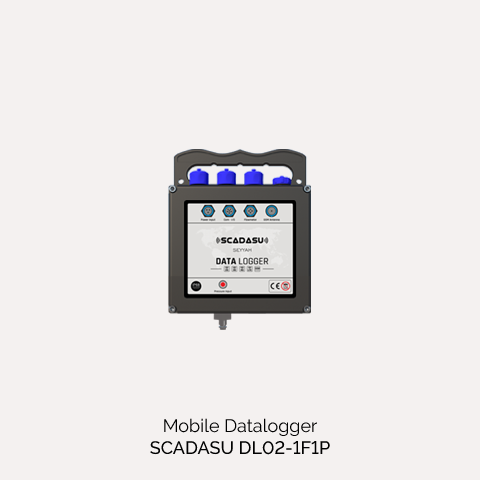

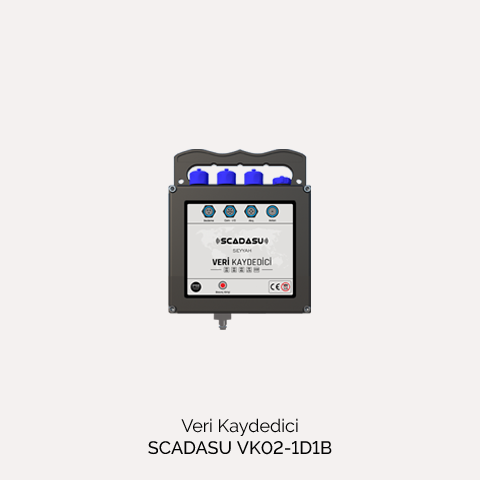

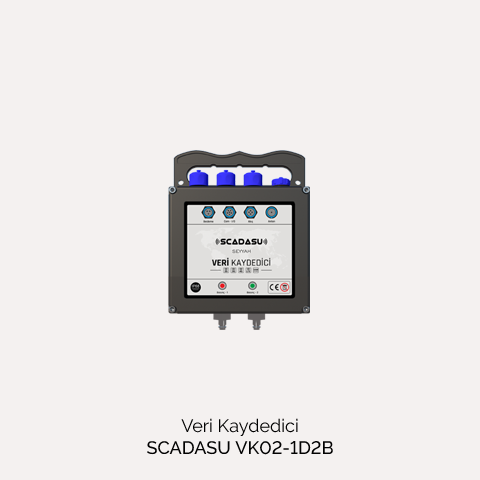

The Mobile Datalogger is offered in 2 models as 1 Flow 1 Pressure Channel and 1 Flow 2 Pressure Channel. Please use the product codes at the order stage.
