SCADA SYSTEM

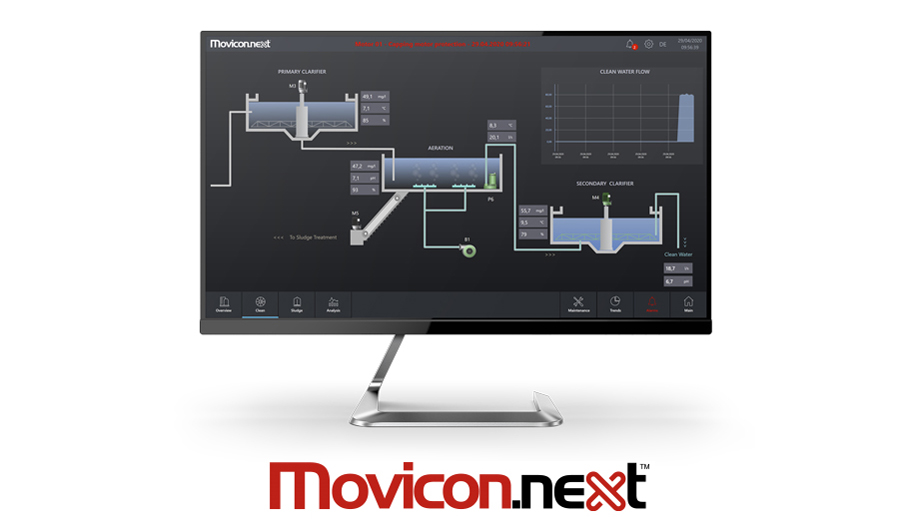

Movicon SCADA

With Movicon.NEXT SCADA, Drinking Water and Wastewater networks can be monitored and controlled remotely. It is important to monitor and control the start/stop and failure conditions of the pumps in the pumping stations, especially in drinking water networks of the type where drinking water is drawn from a specific source and promoted to water tanks at higher elevations.

DMA

The control mechanism automatically starts and stops the pumps in the pumping station according to the level of the tank where the water is pumped. It allows manual intervention when necessary. In this way, the system is completely under your control and provides a great deal of energy and labor savings.

SCADA System Offers

  • Water Tank levels can be monitored instantly.
  • The pumps operate automatically according to the tank level.
  • The amount of water supplied to the network can be monitored and recorded.
  • Valves can be controlled automatically or manually.
  • Energy savings are achieved by operating the pumps at times when the energy is cheap.
  • ?Pump failures can be seen immediately, and the breakdown team is quickly directed.
  • By monitoring the line pressures instantly, network failures can be prevented with the measures taken.
  • Equal aging can be achieved in places where more than one pump is running.
  • With the data obtained from the sensors, measures can be taken before the equipment fails.
  • Unauthorized access to facilities can be viewed as an alarm.
  • Chlorination process can be controlled remotely and can monitor values.
  • All data from the analyzers can be monitored centrally.



Powerful Alarm Management

The Alarm Management allows alarm and event configurations to be managed and customized to provide operators with helpful and accurate information and an intuitive event management. Alarms can be configured to manage ON, OFF, ACK, RST and SHELVE events according to the ISA S-18 and OPC UA A&E specifications.

Reports, Trends and Data Analysis

Movicon.NExT™ offers powerful tools for analyzing and reporting historical data. Trends, Charts, Tables, Data Analysis and a powerful integrated Report Designer offer sophisticated data analysis solutions that can be deployed locally or over the web. Movicon.NExT™ integrates a complete historical data analysis tool that does not require additional or supplementary tools, and allows access to all DB types to extract data and represent them graphically in a variety of different charts. The Report Designer allows reports to be created and managed locally or over the web offering unmatched features to enable this. Web Dashboards can also be used for data analysis with HTML5 Web Clients.

Historian and Dataloggers

The Movicon.NExT™ Data Server efficiently records all data managed by the software platform using both the Historian and Datalogger technology. The Virtual File System (VFS) technology is also used to extract data despite whatever recording tool is used. Data are recorded in Ms SQL Server format for default, but database connectors are available for Oracle, My SQL databases and Cloud computing such as Microsoft Azure.
